Mould, die and tooling shops
Discuss flat faces on plates, inserts, fixtures and tooling components.
- Ask first
- Workpiece size, material, hardness, surface finish and clamping method.
- Start with
- Saddle-type or NC surface grinding.
Grinding machines · Global distributor opportunities
Build your grinding portfolio.
Build your grinding portfolio.
Back it with factory support.
Connect your customers’ surface and profile grinding needs with a suitable Chuanhe machine. Develop the opportunity with product information, application review and a clearly agreed service plan.
Worldwide applications · Drawing-based selection
G306SSaddle-type surface grinder
600 × 300 mm worktableOne example from the range
SPECIFICATION-BASED SHORTLIST
Find your grinding machine.
Start with the dimensions. Review the configuration with our engineers.
PUBLISHED SPECIFICATIONS
These models are not confirmed matches: at least one requested parameter is missing or configuration-dependent. We have not treated missing data as zero or as a pass.
Have a drawing or a complex part?
Ask us to check the process, configuration and automation scope.
Selection support only. Final suitability requires an engineering review of your part and configuration.
Start with the workpieceThree conversations to open
Three conversations to open
with your customers.
Use these application examples to qualify a project—not as a guarantee of suitability or a list of existing Chuanhe customers.
Machine builders & component suppliers
Evaluate larger plates, bases and other workpieces that need more table space or clearance.
- Ask first
- Part plus fixture weight, travel, spindle clearance and loading access.
- Start with
- Movable-column or gantry-type grinding.
Profile & precision-component producers
Review drawings where the geometry, grinding sequence or dressing method drives the choice.
- Ask first
- Feature geometry, tolerances, wheel access, dressing and acceptance criteria.
- Start with
- CNC surface, profile or vertical CNC grinding, subject to application review.
A range with a clear sales roleExplain the choice.
Explain the choice.
Then narrow the shortlist.
Choose the machine structure and control approach from the customer’s process. Do not assume every configuration in a family has the same functions.
9 existing product pages
Saddle-Type Surface Grinders
A starting point for general flat-surface work in toolrooms and component production.
Qualify table size, load, travel and the required manual or automatic feed functions.
Explore saddle-type grinding →
5 existing product pages
Movable Column Grinders
Extend the conversation to workpieces needing a larger working envelope.
Compare actual part and fixture dimensions, clearance, table load and loading access.
Explore movable-column grinding →
1 existing product page
Gantry-Type Grinders
Review larger workpieces against the published G1020D, G1532D and G1542D configurations.
Confirm pillar clearance, table capacity, spindle configuration and installation requirements.
Explore gantry grinding →
7 existing product pages
NC Surface Grinders
A boxway surface-grinding range for customers reviewing feed functions and operating workflow.
Check the selected model’s control functions, travel and grinding cycle requirements.
Explore nc surface grinding →
5 existing product pages
CNC Surface Grinders
Discuss surface-grinding work where the required sequence and control arrangement guide the choice.
Agree the process, axes, wheel and dressing requirements for the specific configuration.
Explore cnc surface grinding →
5 existing product pages
CNC Profile Grinders
Develop application-led enquiries where feature geometry matters as much as workpiece size.
Review the drawing, wheel profile, dressing method, access and acceptance conditions.
Explore cnc profile grinding →
3 existing product pages
Vertical CNC Grinders
Evaluate the published G410HV and G418HV configurations against the customer’s component and process.
Confirm geometry, fixturing, wheel access and the agreed inspection method with the factory.
Explore vertical cnc grinding →
2 existing product pages
CNC Right-Angle Grinders
Review G400HV and G500HV for grinding vertical faces on rectangular workpieces.
Confirm the required faces, squareness, parallelism, clamping and agreed process.
Explore cnc right-angle grinding →A right-angle or other application-specific requirement?
Discuss the application ↗Send the drawing for a configuration discussion. Available models and scope must be confirmed before quotation.
A practical selection guideAsk the questions that
Ask the questions that
change the machine choice.
This guide prepares the technical conversation. The final configuration follows the drawing, process review and model-specific specifications.
| Customer requirement | Start by comparing | Confirm before recommending |
|---|---|---|
| General flat-surface work | Saddle-type / NC surface | Table and travel envelope, part plus fixture load, required feed functions and operator workflow. |
| A longer or heavier workpiece | Movable-column / gantry | Worktable size, full travel, load rating, clearance, foundation and loading arrangement. |
| Repeated grinding sequences | NC / CNC surface | Actual axes and cycle functions, setup changes, dressing, coolant and operator training. |
| Profiles or application-specific geometry | CNC profile / vertical CNC | Drawing, wheel access and dressing, fixturing, material and the agreed acceptance method. |
01Drawing & material
Features, hardness, stock allowance and finish.
02Part & fixture
Envelope, combined weight and loading access.
03Process & volume
Operations, batch size and operator workflow.
04Acceptance & site
Inspection method, utilities and service plan.
Bring a customer project to the factory discussion.
Share the part drawing and requirements before finalizing the machine configuration.
Existing product directoryFind the product.
Find the product.
Review its specifications.
Every entry links to an existing Chuanhe product page. Series pages may cover more than one model; no new model or technical specification is introduced here.
Showing 37 product pages
Compare specifications by machine family
Open a family to compare its published specifications. Precision figures are source references, not unconditional performance guarantees.
Saddle-Type Surface Grinders (9)
Swipe or scroll horizontally to view every column.
Movable Column Grinders (5)
Swipe or scroll horizontally to view every column.
| Model | Worktable · L × W | Table load | Parallelism · reference | Ra · reference | Source |
|---|---|---|---|---|---|
| G5010S | 1000×500 mm | 800 kg | 0.005 mm / 500 mm | 0.25 μm | SourceModel technical sheet or published test-piece specification. The locator identifies the original entry; test conditions still need agreement.
|
| G5012S | 1200×500 mm | 800 kg | 0.005 mm / 500 mm | 0.25 μm | SourceModel technical sheet or published test-piece specification. The locator identifies the original entry; test conditions still need agreement.
|
| G6015S | 1500×600 mm | 800 kg | 0.005 mm / 500 mm | 0.25 μm | SourceModel technical sheet or published test-piece specification. The locator identifies the original entry; test conditions still need agreement.
|
| G6030S | 3000×600 mm | 800 kg | 0.005 mm / 500 mm | 0.25 μm | SourceModel technical sheet or published test-piece specification. The locator identifies the original entry; test conditions still need agreement.
|
| G7020S | 2000×700 mm | 1500 kg | 0.005 mm / 500 mm | 0.25 μm | SourceModel technical sheet or published test-piece specification. The locator identifies the original entry; test conditions still need agreement.
|
Gantry-Type Grinders (3)
Swipe or scroll horizontally to view every column.
NC Surface Grinders (7)
Swipe or scroll horizontally to view every column.
CNC Surface Grinders (5)
Swipe or scroll horizontally to view every column.
CNC Profile Grinders (5)
Swipe or scroll horizontally to view every column.
| Model | Grinding range · as listed | Clamping area · as listed | Travel · as listed |
|---|---|---|---|
| G410HP/HP3 | 400 × 1000 mm | 400 × 1200 mm | 1200 / 420 mm (X / Z) |
| G418HP/HP3 | 400 × 1800 mm | 400 × 2200 mm | 2000 / 420 mm (X / Z) |
| G48HP/HP3 | 400 × 800 mm | 400 × 1200 mm | 900 / 395 mm (X / Z) |
| G608HP | 600 × 800 mm | 600 × 1000 mm | 1000 / 620 mm (X / Z) |
| G63HP/HP3 | 300 × 600 mm | 300 × 1000 mm | 700 / 295 mm (X / Z) |
Vertical CNC Grinders (3)
Swipe or scroll horizontally to view every column.
CNC Right-Angle Grinders (2)
Swipe or scroll horizontally to view every column.
Worktable, grinding range and clamping area are different measures.

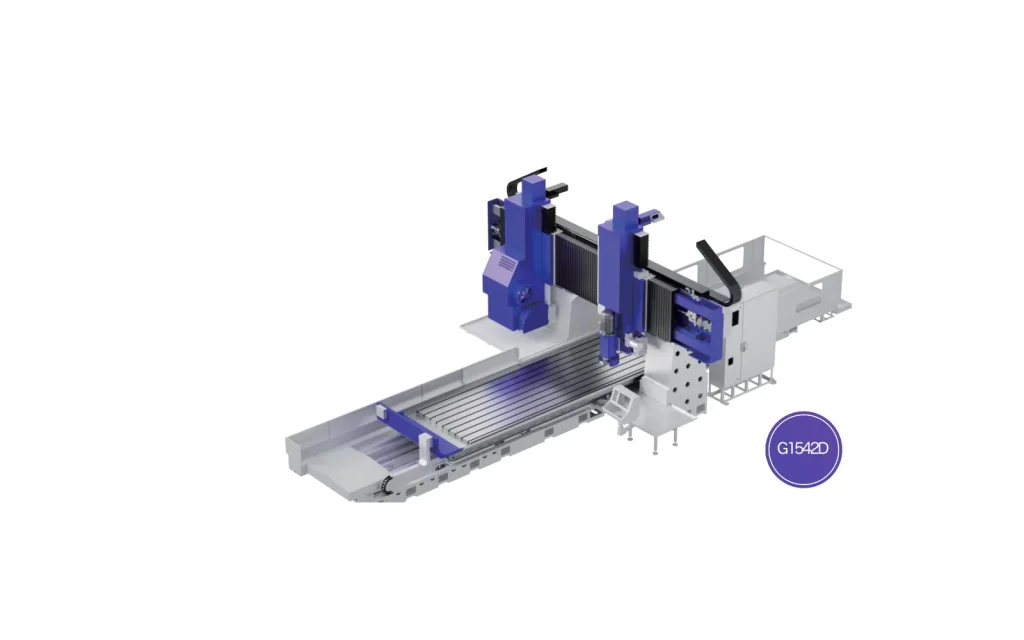

G1020D / G1532D / G1542DGantry-Type Grinders- G1020D
- 1000×2000 mm
- G1532D
- 1500×3200 mm
- G1542D
- 1500×4200 mm
G2550ASaddle-Type Surface Grinders- Worktable · L × W
- 500×250 mm
- Table load
- 300 kg
G2550SSaddle-Type Surface Grinders- Worktable · L × W
- 500×250 mm
- Table load
- 300 kg
G306KSaddle-Type Surface Grinders- Worktable · L × W
- 600×300 mm
- Table load
- 420 kg
G306NCNC Surface Grinders- Worktable · L × W
- 600×300 mm
- Table load
- 420 kg
G306SSaddle-Type Surface Grinders- Worktable · L × W
- 600×300 mm
- Table load
- 420 kg
G400HVCNC Right-Angle Grinders- Grinding range · as listed
- 400 × 400 mm
- Travel · as listed
- 1000 / 300 mm (X / Z)
G408KSaddle-Type Surface Grinders- Worktable · L × W
- 800×400 mm
- Table load
- 700 kg

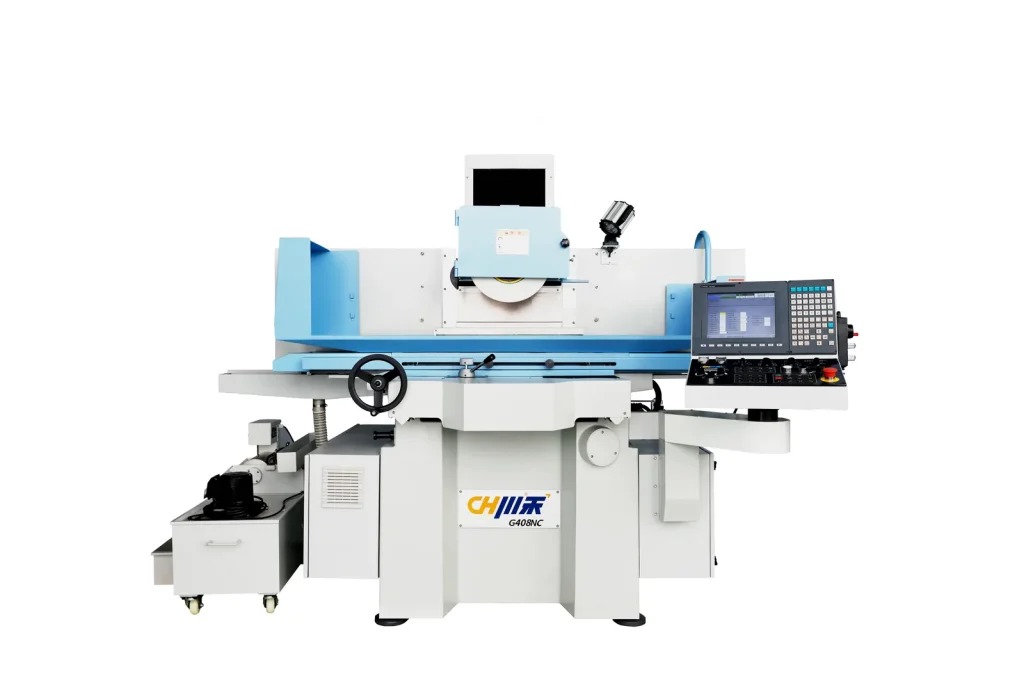

G408NCNC Surface Grinders- Worktable · L × W
- 800×400 mm
- Table load
- 700 kg
G408SSaddle-Type Surface Grinders- Worktable · L × W
- 800×400 mm
- Table load
- 700 kg
G410HCNC Surface Grinders- Worktable · L × W
- 1000×400 mm
- Travel · as listed
- 1200 / 420 mm (X / Z)
- Table load
- 800 kg
G410HP/HP3CNC Profile Grinders- Worktable · L × W
- 1000×400 mm
- Travel · as listed
- 1200 / 420 mm (X / Z)
- Table load
- 800 kg
G410HVVertical CNC Grinders- Worktable · L × W
- 1000×400 mm
- Travel · as listed
- 1200 / 350 mm (X / Z)
- Table load
- 680 kg
G418HCNC Surface Grinders- Grinding range · as listed
- 400 × 1800 mm
- Travel · as listed
- 2000 / 420 mm (X / Z)
G418HP/HP3CNC Profile Grinders- Grinding range · as listed
- 400 × 1800 mm
- Travel · as listed
- 2000 / 420 mm (X / Z)
G418HVVertical CNC Grinders- Grinding range · as listed
- 360 × 1800 mm
- Travel · as listed
- 2000 / 380 mm (X / Z)
G48HCNC Surface Grinders- Grinding range · as listed
- 400 × 800 mm
- Travel · as listed
- 900 / 395 mm (X / Z)
G48HP/HP3CNC Profile Grinders- Grinding range · as listed
- 400 × 800 mm
- Travel · as listed
- 900 / 395 mm (X / Z)
G500HVCNC Right-Angle Grinders- Grinding range · as listed
- 500 × 500 mm
- Travel · as listed
- 1000 / 300 mm (X / Z)
G5010NCNC Surface Grinders- Worktable · L × W
- 1000×500 mm
- Table load
- 1000 kg
G5010SMovable Column Grinders- Worktable · L × W
- 1000×500 mm
- Table load
- 800 kg
G5012NCNC Surface Grinders- Worktable · L × W
- 1200×500 mm
- Table load
- 1000 kg
G5012SMovable Column Grinders- Worktable · L × W
- 1200×500 mm
- Table load
- 800 kg
G6015NCNC Surface Grinders- Worktable · L × W
- 1500×600 mm
- Table load
- 1000 kg
G6015SMovable Column Grinders- Worktable · L × W
- 1500×600 mm
- Table load
- 800 kg

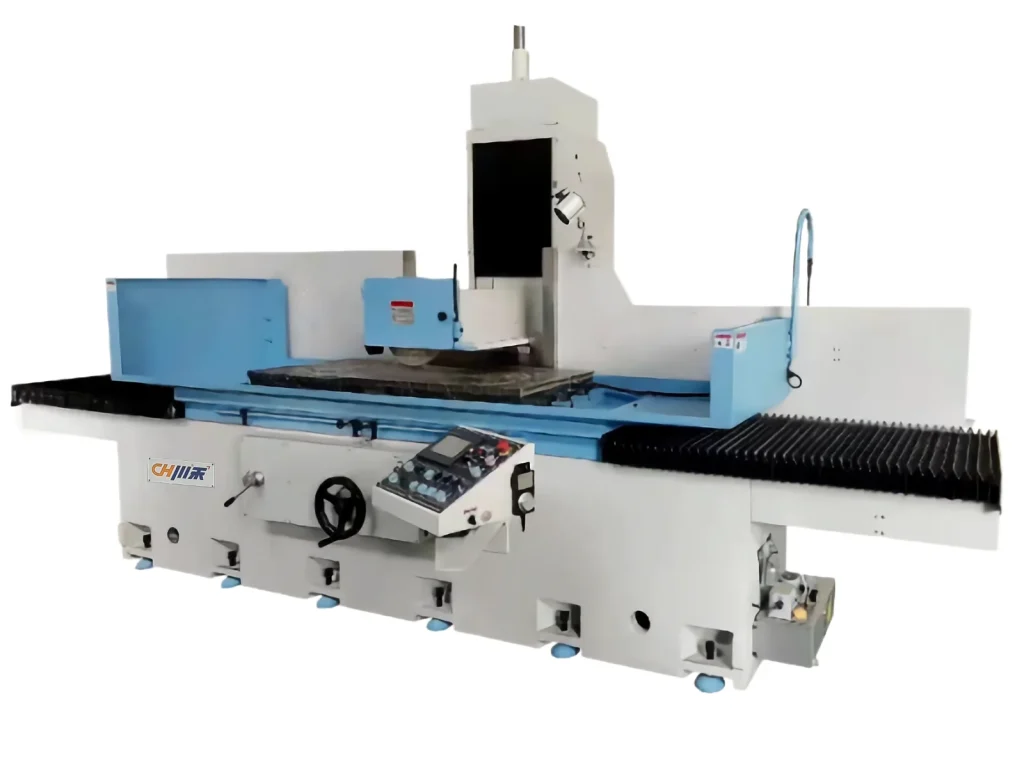

G6030SMovable Column Grinders- Worktable · L × W
- 3000×600 mm
- Table load
- 800 kg
G608HCNC Surface Grinders- Worktable · L × W
- 800×600 mm
- Travel · as listed
- 1000 / 620 mm (X / Z)
- Table load
- 800 kg
G608HPCNC Profile Grinders- Worktable · L × W
- 800×600 mm
- Travel · as listed
- 1000 / 620 mm (X / Z)
- Table load
- 800 kg

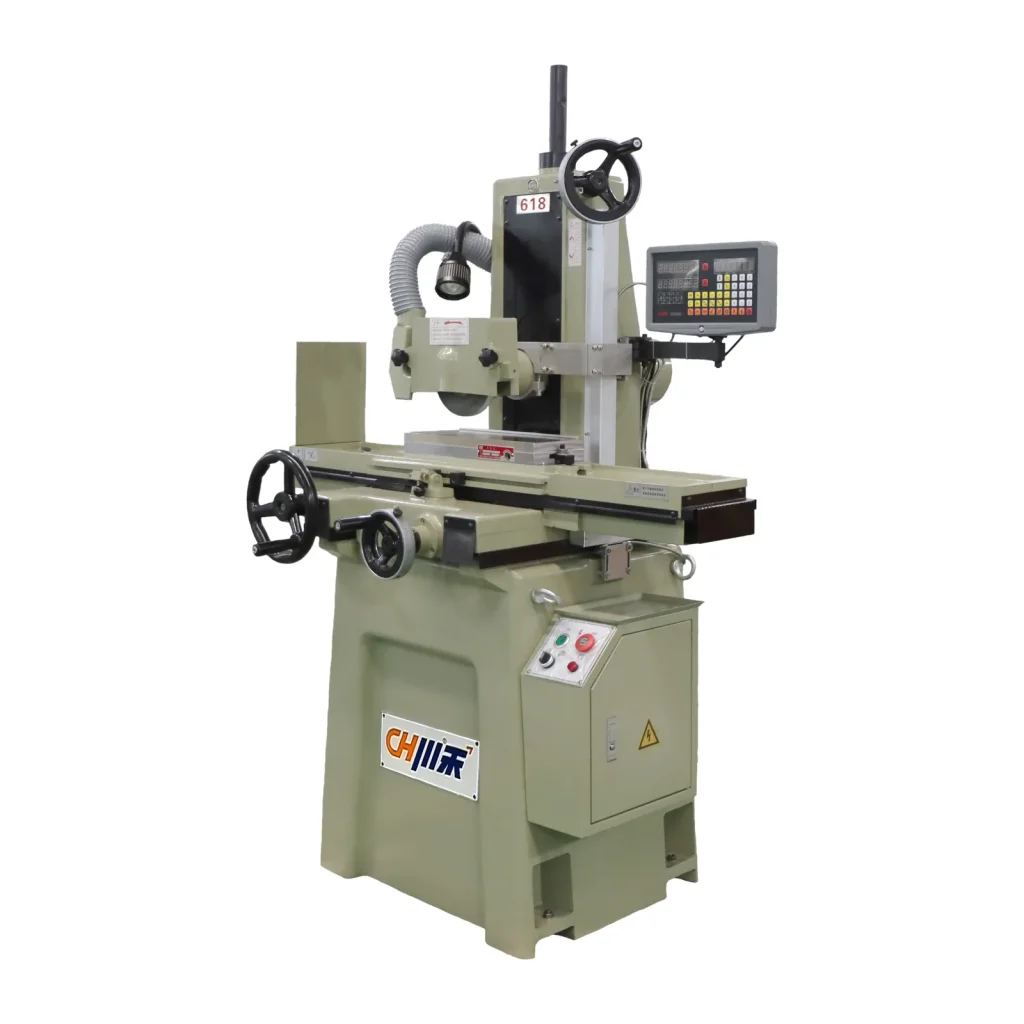

G618Saddle-Type Surface Grinders- Worktable · L × W
- 450×150 mm
- Table load
- 120 kg
G63HCNC Surface Grinders- Grinding range · as listed
- 300 × 600 mm
- Travel · as listed
- 700 / 295 mm (X / Z)
G63HP/HP3CNC Profile Grinders- Grinding range · as listed
- 300 × 600 mm
- Travel · as listed
- 700 / 295 mm (X / Z)
G7020NCNC Surface Grinders- Worktable · L × W
- 2000×700 mm
- Table load
- 1500 kg
G7020SMovable Column Grinders- Worktable · L × W
- 2000×700 mm
- Table load
- 1500 kg
G73HVVertical CNC Grinders- Grinding range · as listed
- 300 × 600 mm
- Travel · as listed
- 700 / 295 mm (X / Z)
G818ASaddle-Type Surface Grinders- Worktable · L × W
- 460×200 mm
- Table load
- 150 kg
G818NCNC Surface Grinders- Worktable · L × W
- 460×200 mm
- Table load
- 150 kg
G818SSaddle-Type Surface Grinders- Worktable · L × W
- 460×200 mm
- Table load
- 150 kg
Your customer relationships. Our factory coordination.A partnership built around
A partnership built around
the way you sell and support.
We welcome machine-tool distributors, agents and service partners worldwide. Product scope, territory availability and support are reviewed together.
Project & lead support
Approved registered projects can receive 3–6 months of protection. Relevant regional inquiries may be referred to authorized partners under the agreed allocation criteria.
Demo & marketing discussion
Qualified partners can discuss demo-machine or first-order terms, approved product materials, advertising lead generation and personnel at agreed exhibitions.
Application & technical backup
Coordinate selection, training, installation and complex service cases with the factory. Responsibilities, travel costs, warranty and spare-parts support are agreed for each project.
All project protection, discounts, lead referrals, exclusivity and service arrangements are subject to written confirmation. No local service centre or fixed warranty period is implied.
Before the first enquiry
Questions from distributors.
Which grinding machines should I start selling?
Start with your customers’ existing work. General flat-surface jobs, larger workpieces and profile applications lead to different shortlists. Share the drawings, expected volume and service resources so the factory can help review the fit.
Can I represent grinding machines without an established service team?
You may apply. Chuanhe can discuss a practical support arrangement matched to your capability. Installation, training, remote or on-site assistance, responsibilities and costs must be agreed before the project proceeds.
Are surface finish and accuracy the same across the range?
No. Review the selected model, configuration, workpiece, process and inspection conditions. Use an agreed acceptance specification rather than applying one model’s test result to the entire range.
Can grinding be part of an automated production project?
Discuss part handling, fixtures, machine interfaces, safety, cycle requirements and the complete process. Automation scope and compatibility require a separate engineering review; they are not assumed for every machine.
Have a specific customer project?
Keep the technical discussion moving.
Send your workpiece and process requirements, or use the distributor application for a partnership discussion.
Distributor application →
